LED Strip S3/S5 Series

S3 and S5 represent the size of the chip used in the flexible led strip. The S3 series led strip light refers to the light strip made of SMD3014 chip (3.0*1.4mm) or SMD3535 chip (3.5*3.5mm), and the S5 series led strip light refers to the light strip made of the largest chip on the market SMD5050 (5.0*5.0mm).
Our Led light strip chips are usually use Sanan brand.If you need Epistar or Philips or other brand, we can also support.The 12V/24V light strip is package 5m per roll.We have IP20, IP65, IP67H, IP67, IP67E, IP68, IP68E waterproof grades, you can choose the appropriate waterproof light strip according to the installation scenario.All strips come with a 5 year warranty.

For easy installation, we will stick 3M adhesive on the back of our led tape strips, just stick it where you want to install it. 3M adhesive is not sticky enough on some specific surfaces, so we can also provide clips and screws to fix the LED ribbon light.Each of our cuttable led strip lights has a corresponding cutting line. You can cut it to the length you want according to the cutting line. If you want to extend the use of flexible strips, led connectors are your best choice. A variety of styles are available to meet various needs.
1.Strip to Strip Connector: Easily attach strip led light to either strip light end for a gap-free connection
2.Strip to Wire Connector: A strip connector clips onto the end of a led strip, but on the other end you can connect a wire to return power or move on to the other strip.
3.Strip to strip with wire Connector: with 10cm of cable between the two connectors
4.L Shape Connector: Creates a perfect 90 degree angle in led strips light. It eliminates the need to bend or splice LED strips, ensuring a professional and beautiful installation.

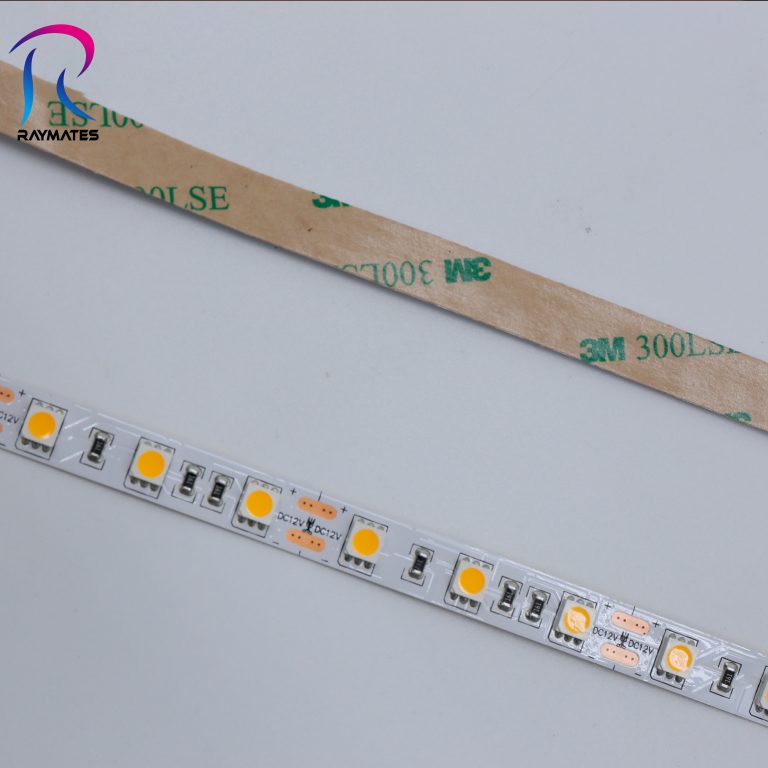

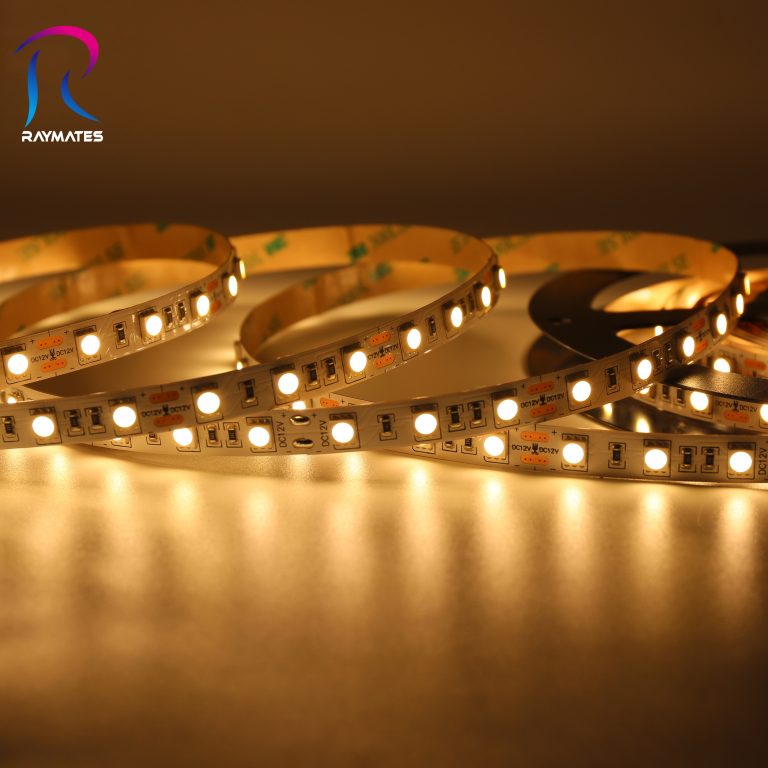

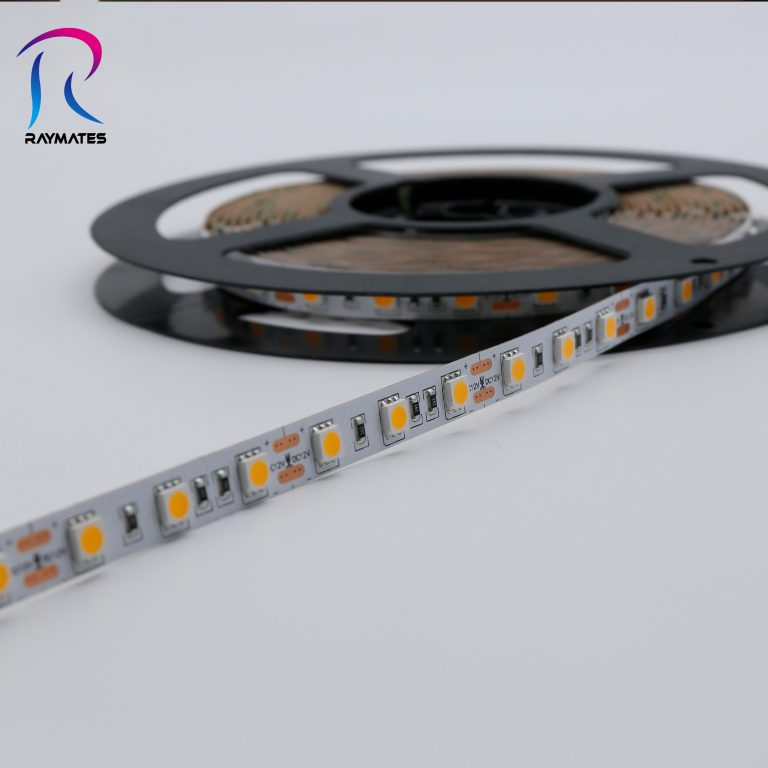

S5 Series
SMD5050 chip usually use for colorful led strip:RGB Strip light,RGBW(4in1) strip light,RGBWW(5in1)strip light,smart pixel strip light.Also use for mono led strip and CCT(2in1) led strip.The flexible light strip has a 120⁰ beam angle. We can add lenses to the chip to change the beam angle.
And 5050 led strip light has the following options for the led quantity and PCB width depending on the color. leds quantity: 30leds, 48leds, 60leds, 72leds, 96leds, 120leds, PCB width: 8mm/10mm/12mm/15mm.
A variety of colors and specifications are available to meet different application scenarios. Highly recommended for exterior & interior lighting of cityscape, hotels, commercial buildings, skyscrapers & high-end lighting projects worldwide.

S3 Series
SMD3535 led strip is RGB color,and the chips is Anti-UV,High-density 120 leds/m, with 8mm and 10mm PCB widths for you to choose. If your project needs to be exposed to the sun for a long time, we recommend using this RGB strip, which has a longer lifespan than ordinary light strips.

SMD3014 led strip use the chips size is small, they are generally used for side-emitting light strips.Use for Commercial and residential lighting such as sanitary mirror lighting, stair ligthing, restaurant decreate, hotel etc.

We can also provide customized board services according to your needs. You can click on our WhatsApp, email or online chat at the bottom right, and we will have professional personnel to provide you with more information
